제품 상세 정보:
결제 및 배송 조건:
|
| 키워드: | 윈치 드럼 슬리브 | 재료: | Q355B |
|---|---|---|---|
| 로프 직경: | 15.875mm | 그루브 하단 지름: | 270mm |
| 요홈 피치: | 16.73mm | 그루브 유형: | Lebus 이중 접이식 |
| 강조하다: | Q355B Lebus rope groove sleeve,PD15B-04G winch drum sleeve,split-sleeve rope groove LBS |
||

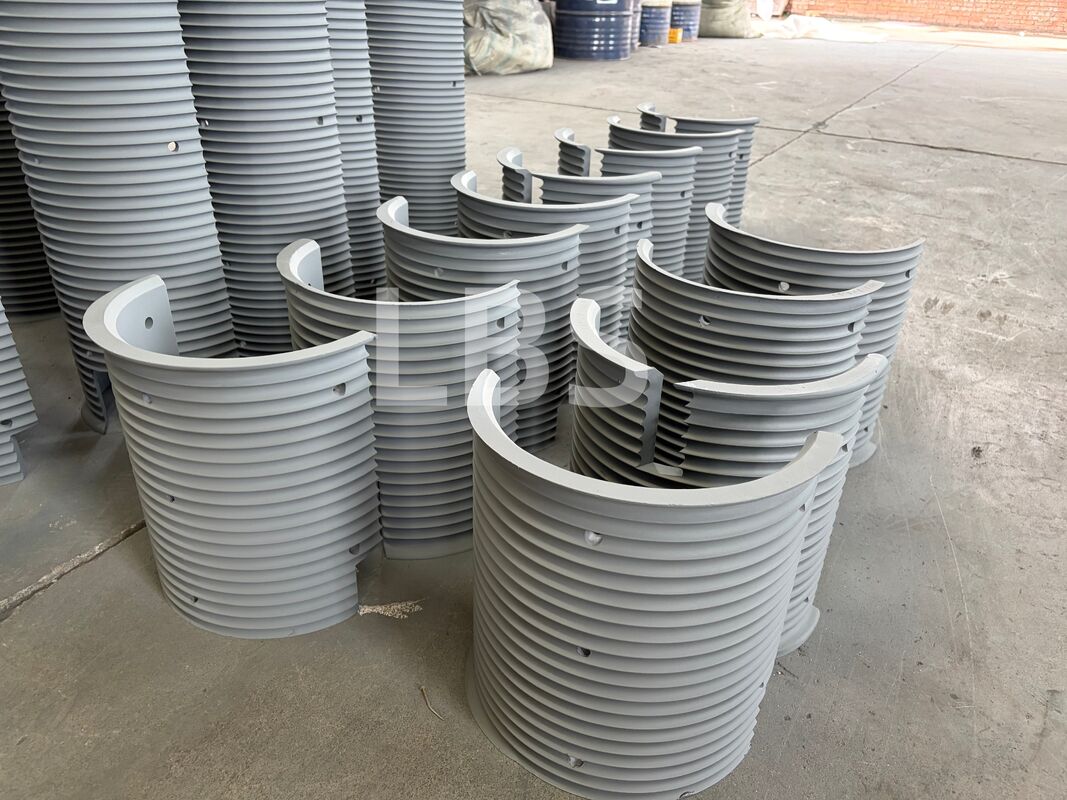

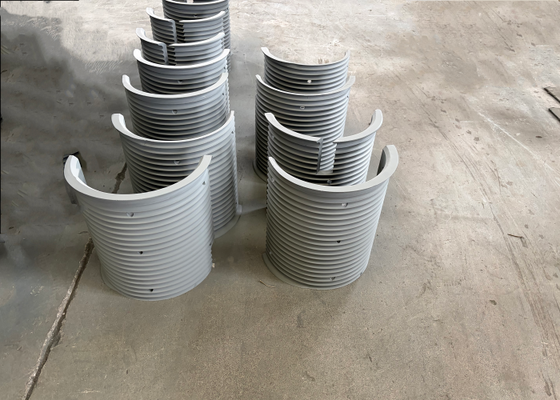

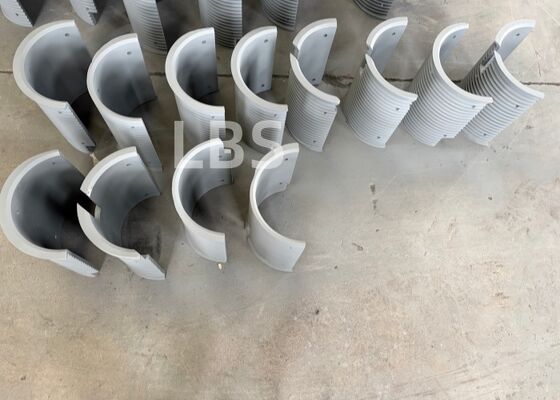

Q355B Lebus Split‑Sleeve Rope Groove for PD15B‑04G Winch Drum 1.Q355B Lebus Split‑Sleeve Rope Groove for PD15B‑04G Winch Drum Description This is Lebus split‑sleeve rope groove matching PD15B‑04G winch drum, made of Q355B high‑strength steel. It is designed for 15.875 mm (5/8") steel wire rope. The groove bottom diameter is φ270 mm, groove pitch 16.73 mm with 20.5 grooves. It adopts left‑hand 65° double‑folded Lebus groove profile. The rope enters through the drum body. The
